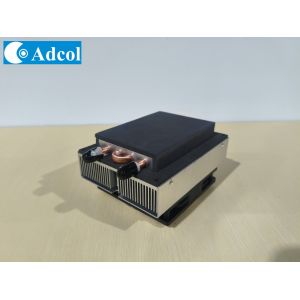

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

Brand Name : Adcol

Model Number : ATL050-12/24VDC

Certification : ISO9001, CE

Place of Origin : China

MOQ : 1

Price : Negotation

Payment Terms : T/T, Paypal

Supply Ability : 10kPcs/Month

Delivery Time : 3-4 Weeks

Packaging Details : Solid Carton Packaging

P/N : ATL050-12/24VDC

Cooling Method : Air to fluid

Cooling Objective : Purified water

Cooling objective Contact Part : Aluminum, partially copper

Cooling Capacity 50W Fan Input Voltage : 50W

Fan Input Voltage : 12/24VDC

Peltier Input Voltage : 12/24VDC

Rated Consumption Current : 8.7A /4.4A

Starting Current : 10.2A /5.1A

Working Humidity : Below 80%

Max Ambient Temperature : 60 degree

Overheat protection : no

Electrical Connection : Screw

Noise : 39DB

Site of Use : Indoor

Outer diameter of Pipe Connecting Port : dia 9.5mm

Dimensions : 160x120x84mm

Mass of Main Unit : est. 1.5kgs

Contact Now

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

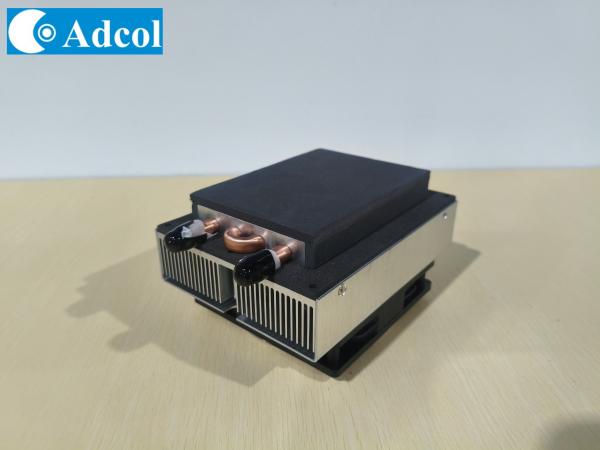

50W Thermoelectric Liquid Cooler

1.Product Introduction

The ATL050-24 Thermoelectric air to Liquid are designed for electronic liquid cooling. They can
cool to 72˚F below ambient or maintain ambient temperatures while removing up to 50W. These
models are available in 12 or 24 VDC configurations.

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

2.Features

  • 50W capacity rated at ΔT = 0ºC, Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser
4.Performance Curve

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

5.Product drawing

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
